Motor Grader: Product Introduction
A motor grader, often referred to as a road grader or simply a "blade," is a pivotal piece of heavy construction equipment engineered for precision surface leveling and fine grading. Distinguished by its long, centrally mounted adjustable blade, this self-propelled machine is the industry standard for achieving exceptionally flat and accurately sloped surfaces. Unlike bulldozers that focus on heavy earthmoving, the motor grader excels in the final stages of construction, where exact specifications and tight tolerances are paramount.
Design and Configuration

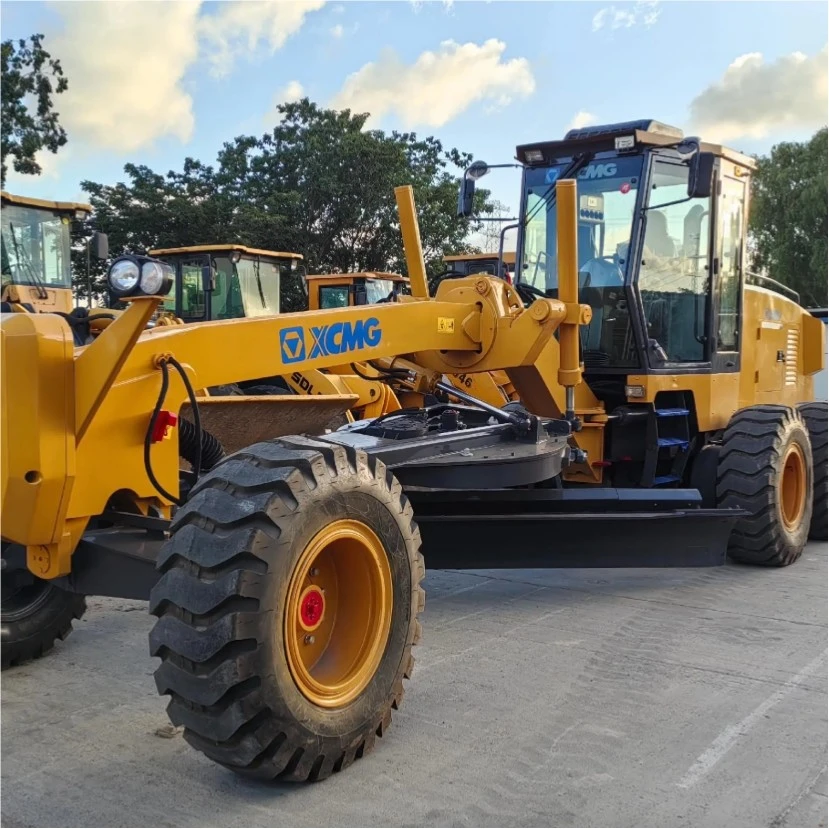

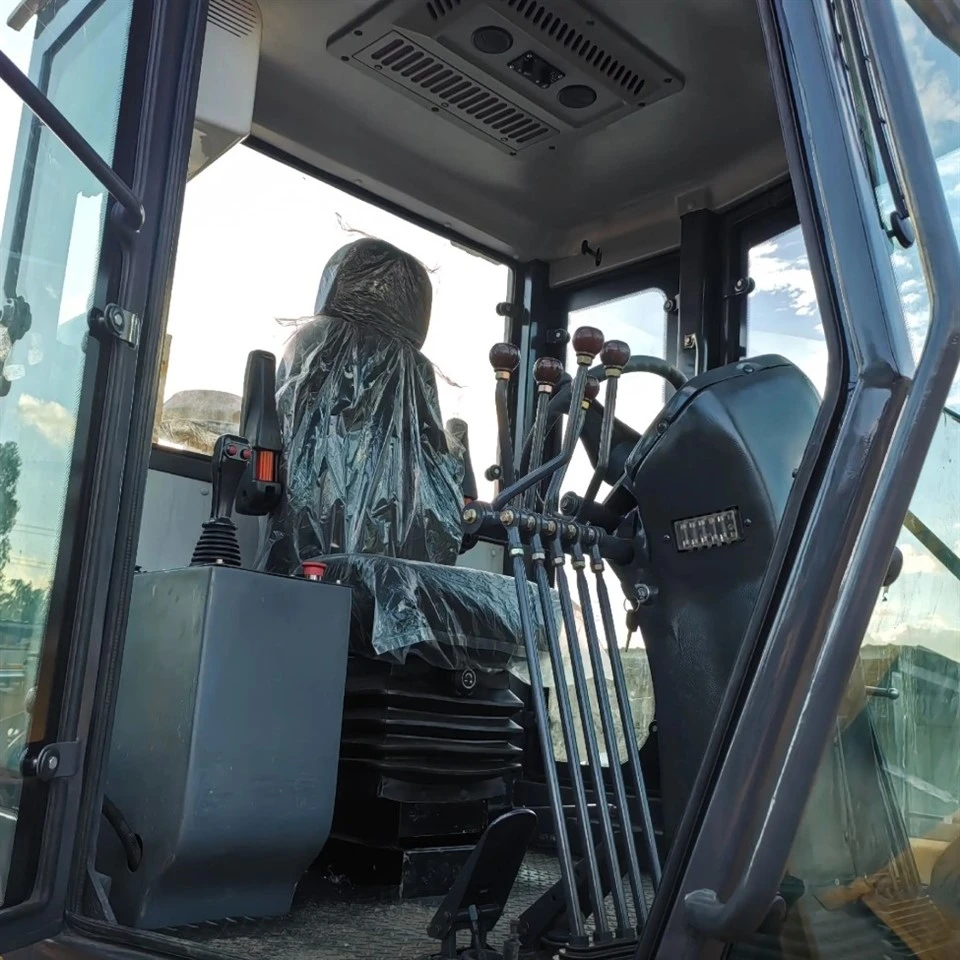

The typical motor grader features a robust three-axle design, with the operator cab and powerful engine positioned over the tandem rear axles, while the front axle provides steering and support. The moldboard (blade) is strategically placed between the front and rear wheels, offering operators superior visibility and control. A circle-turn mechanism allows the entire blade assembly to rotate a full 360 degrees, enabling the machine to cut, carry, and cast material to either side without changing direction. This unique articulation sets the motor grader apart from all other earthmoving equipment.
Core Functions
The primary mission of a motor grader is "finish grading"-the meticulous process of bringing a surface to its final design elevation and cross-slope. The hydraulically operated moldboard can be precisely adjusted for height, angle, tilt, and pitch, allowing operators to shave off thin layers of soil or create crowned road surfaces for proper drainage. On unpaved and gravel roads, motor graders are indispensable for routine maintenance, reshaping the surface and cutting drainage ditches to prolong road life. For paved road construction, they prepare a flat, stable base course to receive asphalt or concrete.
Versatility and Attachments
Modern motor graders are remarkably versatile machines. They are used in building construction to level foundation pads, in agriculture for land leveling, and in mining for haul road maintenance. In winter, they transform into powerful snow removal tools for highways and airports. Optional attachments significantly expand their functionality. Rear-mounted rippers break through hard soils, front-mounted dozer blades enable light pushing, and snow plows adapt the grader for severe weather. These quick-couple attachments allow a single machine to perform multiple tasks across different job sites and seasons.
Power and Technology

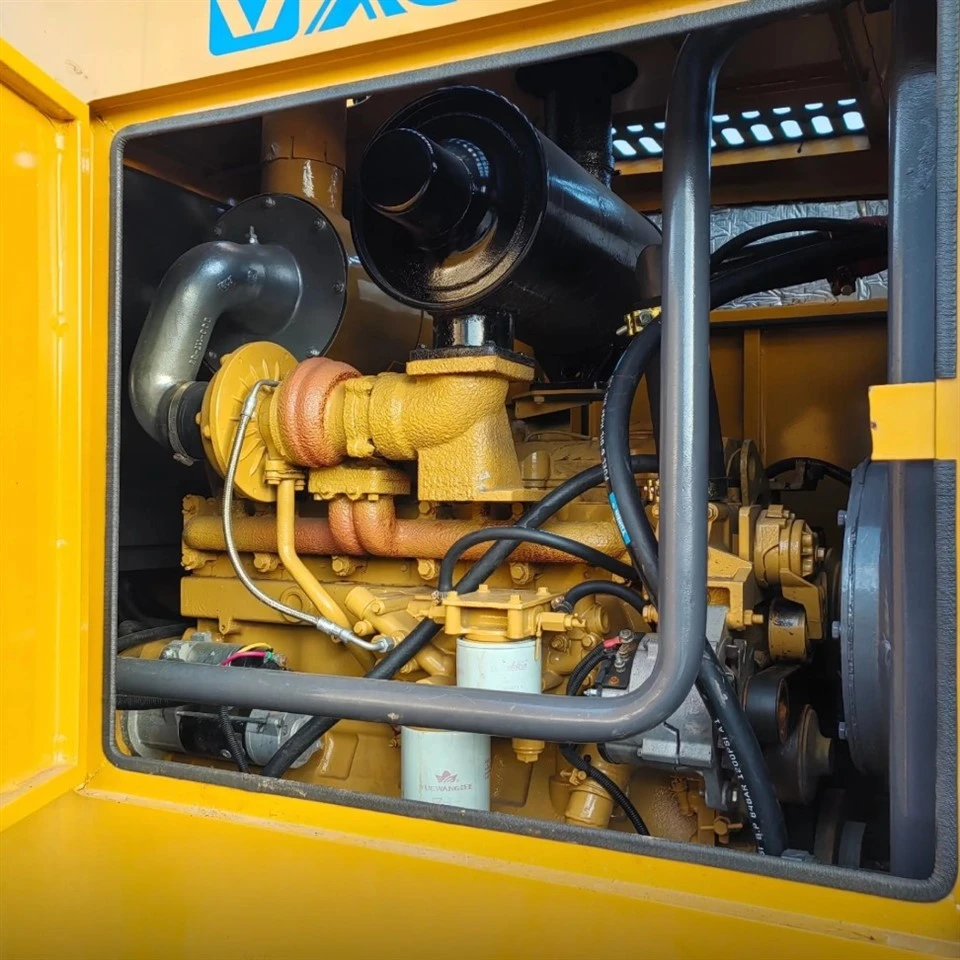

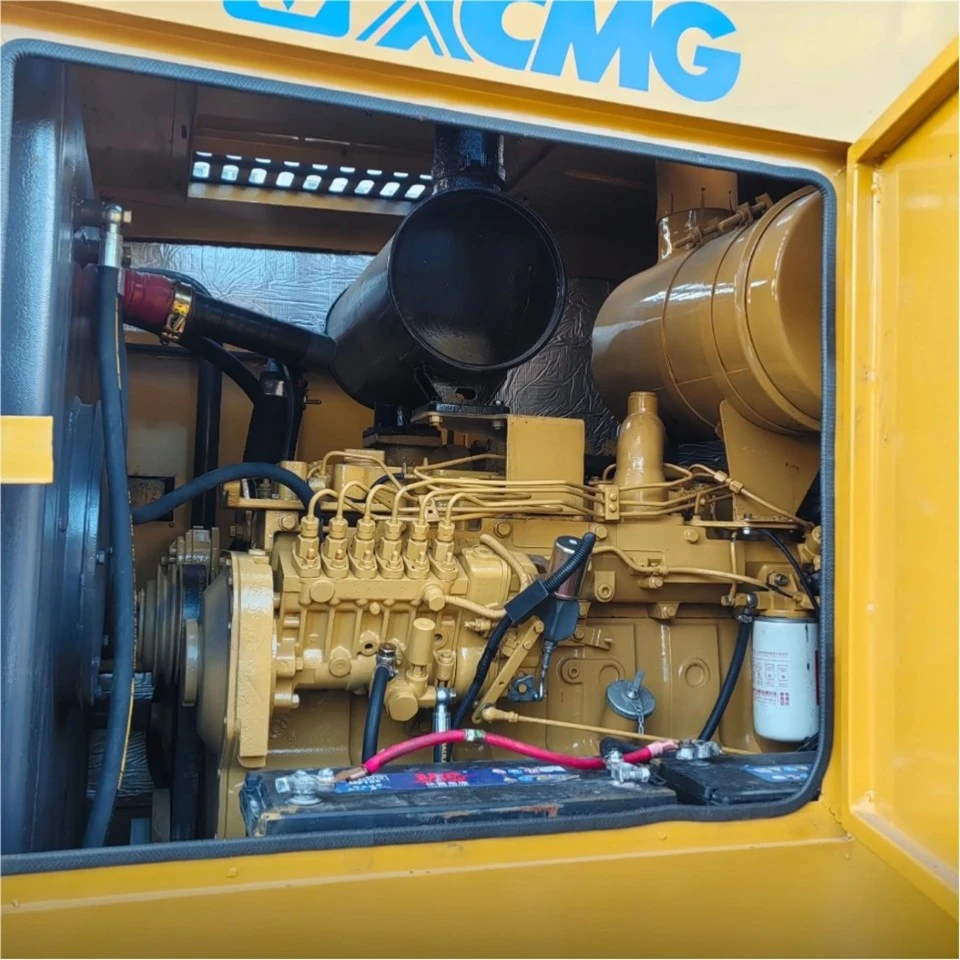

Motor graders are propelled by high-torque diesel engines, with power outputs typically ranging from 125 to over 500 horsepower. Operating weights vary from 10 to over 35 tons, and blade widths range from 2.5 to over 7 meters. The latest generation incorporates cutting-edge technology, including integrated GPS and laser-based grade control systems that automate blade positioning to achieve millimeter-level precision. These systems reduce material waste, minimize rework, and accelerate project completion. Onboard displays provide real-time data on performance and grade progress, while telematics enable remote fleet monitoring.
Conclusion
The motor grader is an indispensable asset on any construction site where precision, versatility, and productivity are required. Its unique design, powerful performance, and advanced technology make it the ultimate tool for creating smooth, safe, and durable surfaces across roads, runways, building sites, and agricultural land. Whether maintaining a gravel road or preparing a major highway foundation, the motor grader delivers the control and accuracy that modern construction demands.
