Product Introduction

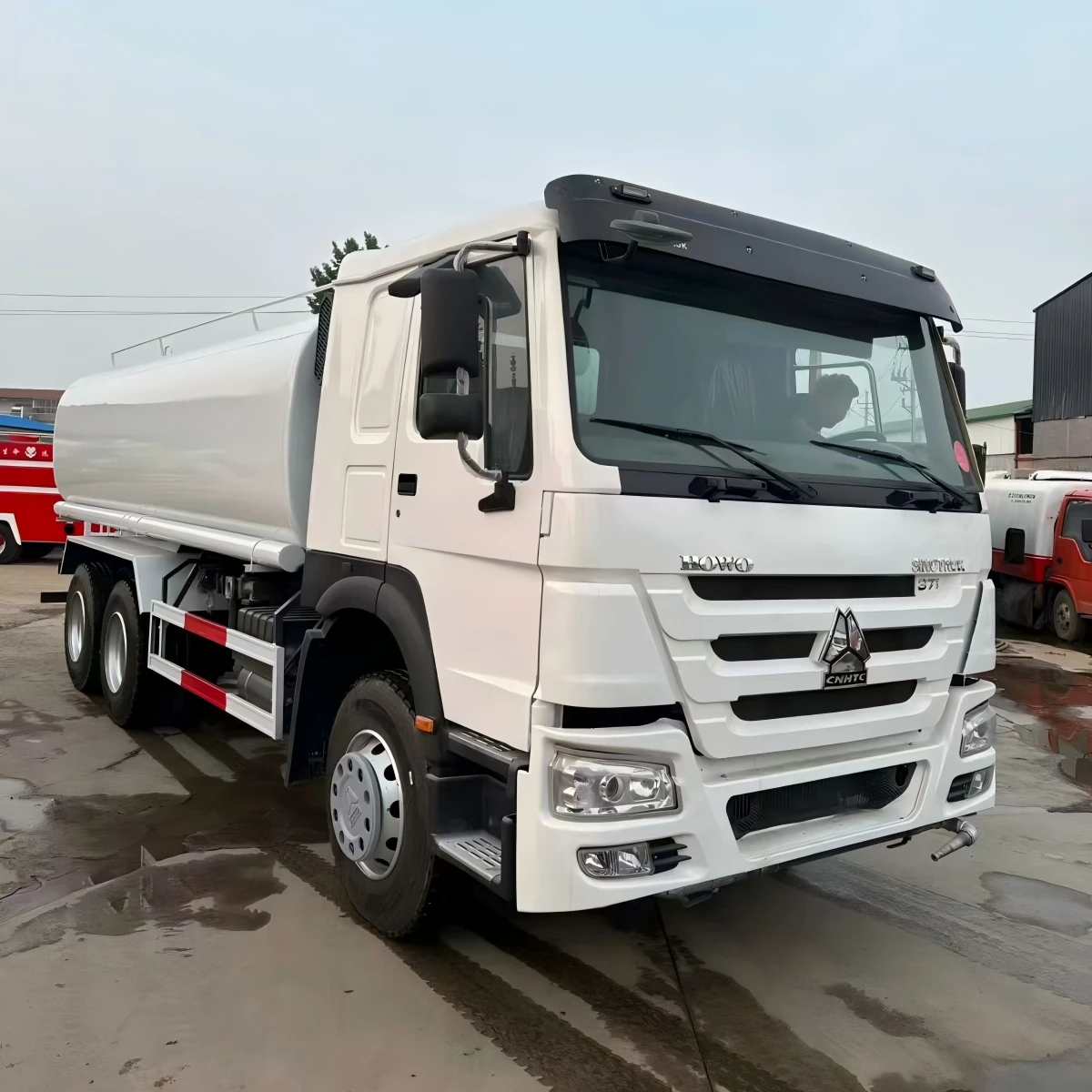

HOWO 6×4 Water Tank Truck – Built on a 6×4 chassis with 336–430 hp engine. Tank capacity 15,000–25,000 liters. Includes high-flow centrifugal pump, rear spray nozzle, and internal baffles to reduce water surge. Optional: potable lining, water cannon.
Product Parameters
|
Item |
Specification |
|
Vehicle Model |
HOWO 6×4 Water Tank Truck |
|
Drive Type |
6×4 Two-Wheel Drive |
|
Engine Power |
336–371 hp |
|
Transmission |
6/8-speed Manual |
|
Wheelbase |
1800+4800 mm |
|
Gross Vehicle Weight |
25,000 kg |
|
Rated Payload |
13,000–15,000 kg |
|
Curb Weight |
~10,000 kg |
|
Tank Material |
High-strength carbon steel with anti-corrosion coating |
|
Tank Capacity |
10–30 m³ (customizable) |
|
Tank Function |
Optional pump system for irrigation or water supply |
|
Safety Equipment |
Side & rear protection, safety valves, grounding wire |
|
Cabin Features |
Spacious and comfortable, wide visibility, air conditioning optional |
|
Applications |
Construction site watering, municipal sanitation, landscaping irrigation, firefighting |
Product Details
Product Highlights
Product Features
- 6×4 chassis with 336–430 hp engine – climbs well under full load
- Tank capacity from 15,000 to 25,000 liters (custom sizes available)
- Internal baffles reduce water surge during stops or turns
- Centrifugal pump driven by PTO – fills or unloads at 40–60 m³/h
- Rear spray nozzle included; side hose connection standard
- Optional potable water lining, water cannon, or extra hose reel
Technical Advantages
- Chassis strength – Double-layer frame rails, rated for 40+ tons gross vehicle weight. No flex under hard braking or rough terrain.
- Drivetrain match – Engine, HW series transmission, and HC16 axles are torque-mapped together. Less power loss than mismatched component builds.
- Tank integration – Subframe mounted on rubber pads, not rigid bolts. Reduces stress cracks at tank supports.
- Plumbing layout – Pump, valves, and hose reel positioned for short, straight runs. Fewer bends mean faster flow and easier maintenance.
- Corrosion protection – Entire chassis gets a two-coat anti-rust process. Tank interior optional food-grade lining.
Our Factory
Packing & Delivery
Whole truck shipped as one unit. Pump, meter, hoses individually wrapped. Threaded ports capped. Tank covered with tarpaulin. Light grease on exposed metal – easy to remove.
25–35 days after deposit. Shipped by Ro-Ro or bulk carrier. Knockdown for container shipping optional. Document pack and basic tool kit inside cab.
Partial Customer Reviews
FAQ
1. What is the typical tank capacity?
15,000 to 25,000 liters. Custom sizes available up to around 28,000 liters.
2. Can it carry drinking water?
Yes – if you add the optional food grade interior coating. Standard carbon steel is for non potable water only.
3. How does the pump work?
Centrifugal pump driven by the transmission PTO. Flow rate 40–60 m³ per hour. Can both fill the tank and spray water out.
4. What is included as standard?
Rear spray nozzle, side hose connection, internal surge baffles, and a basic tool kit.
5. Any options worth considering?
Potable water lining, cab roof water cannon (range ~30 meters), extra hose reel, and front spray bar.
6. How long before delivery?
25–35 days after deposit confirmation. Lead time depends on options and shipping schedule.
