Product Introduction

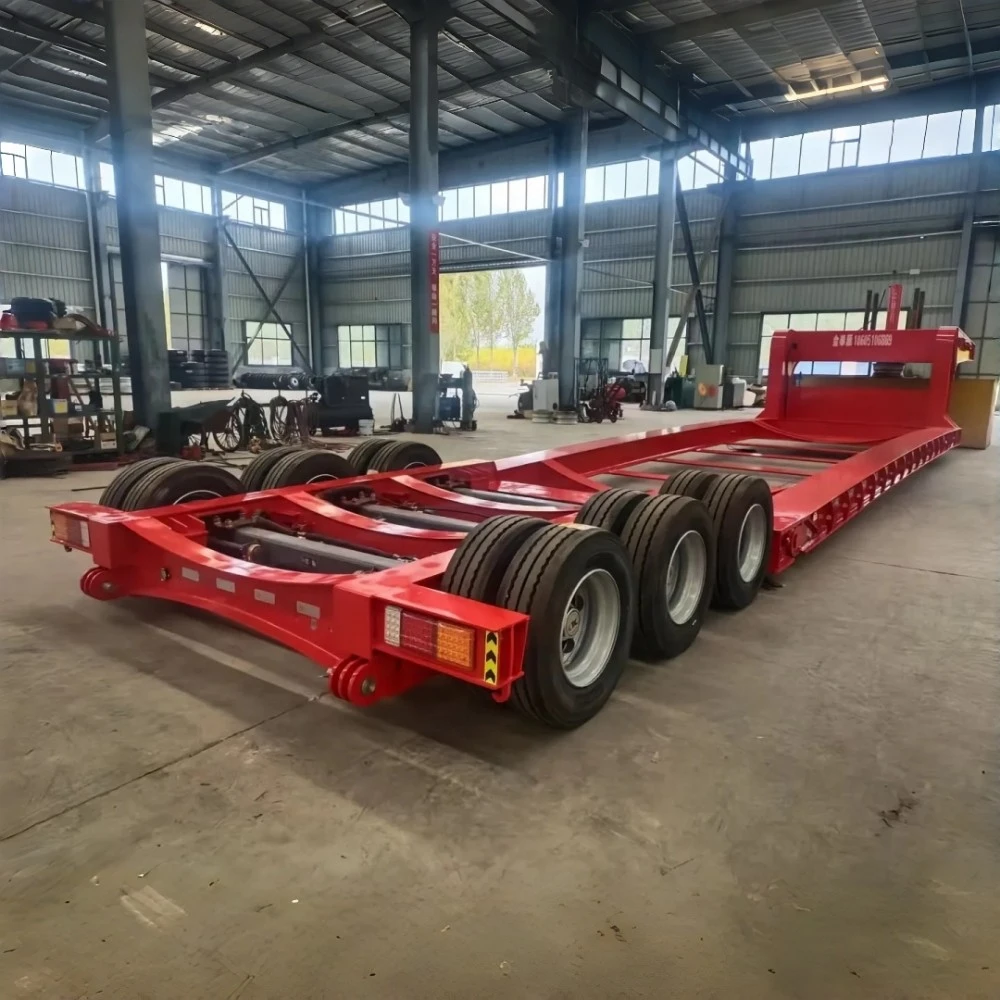

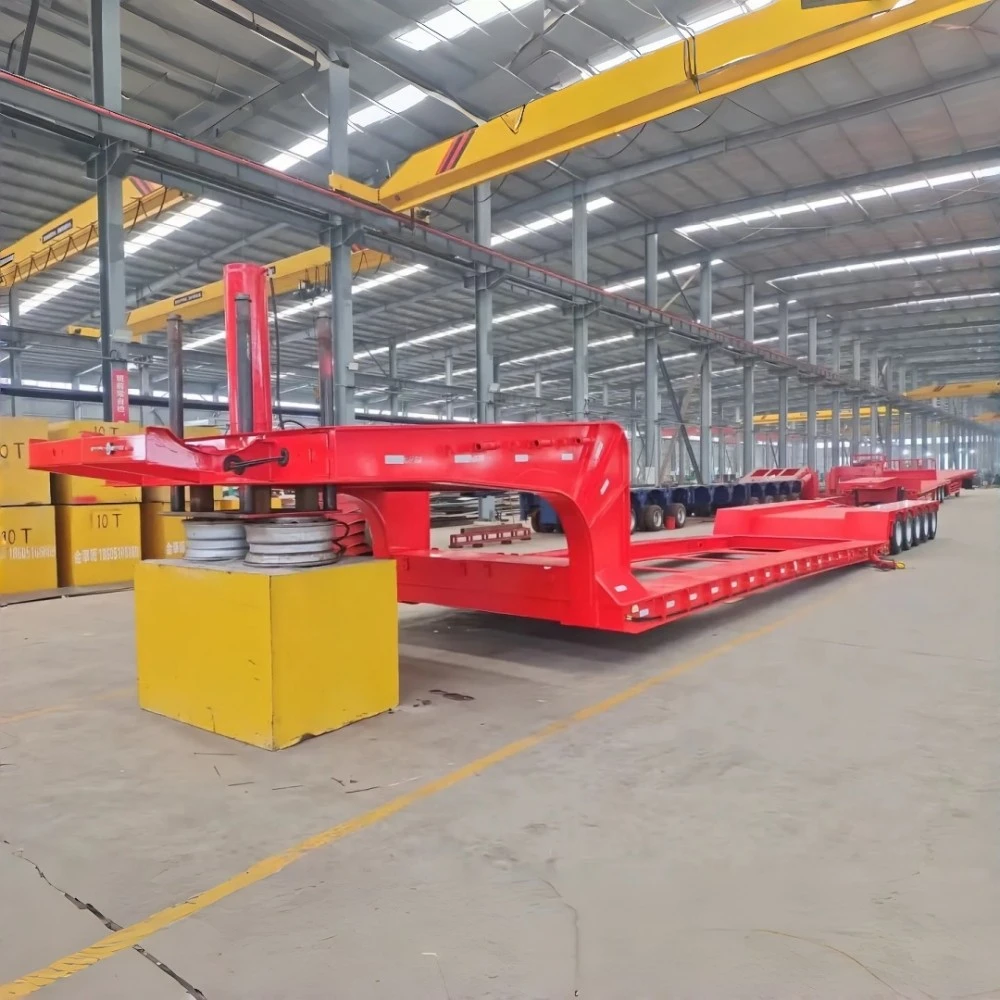

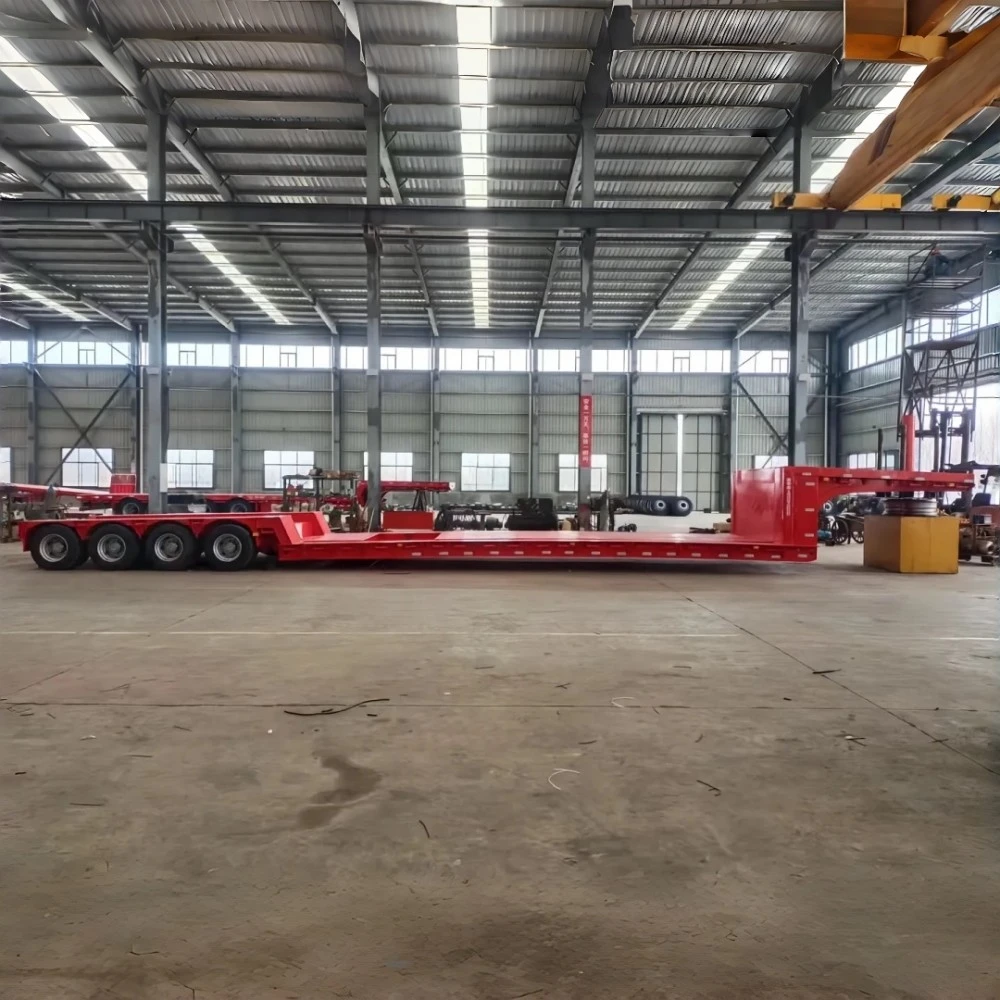

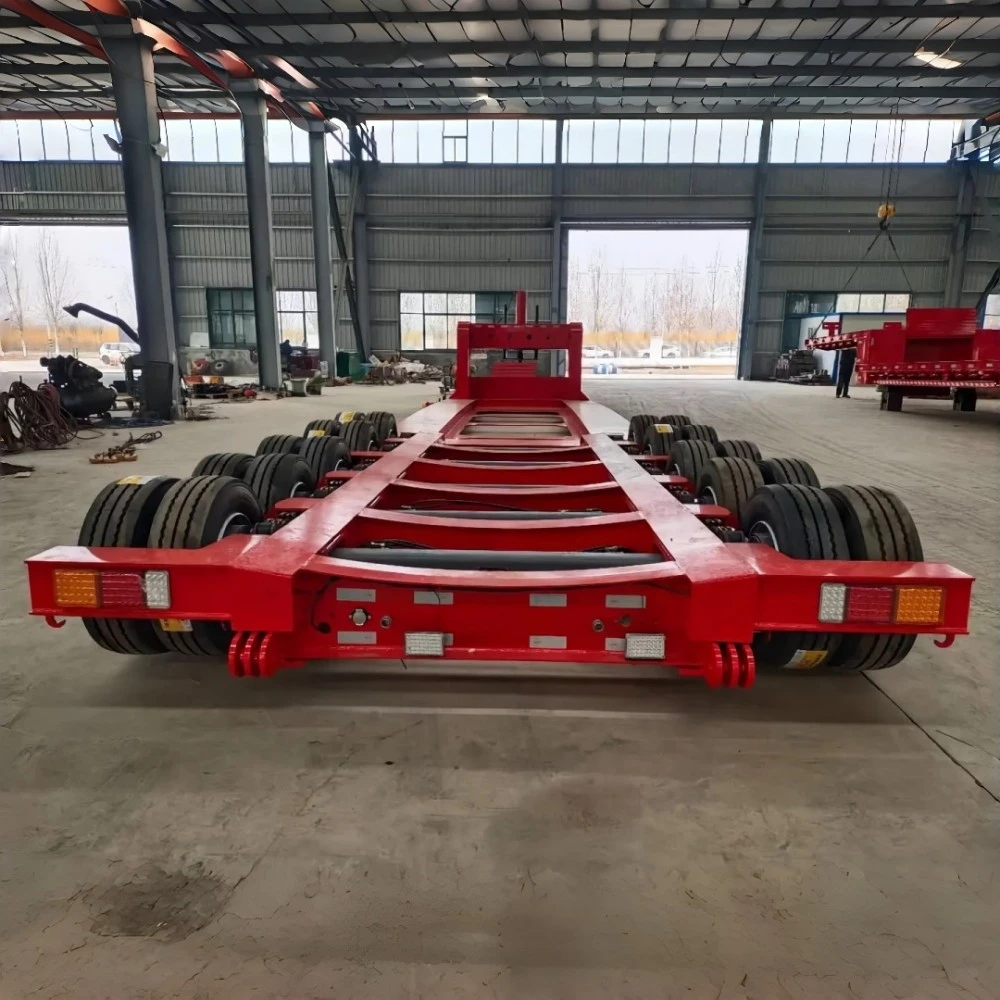

This heavy transport semi-trailer features a high-tensile steel frame, detachable gooseneck, and low-profile deck (as low as 0.9m) for oversized cargo. Multi-axle configurations (2 to 5 axles) with optional hydraulic steering ensure balanced load distribution. Mechanical or air suspension is available. Designed to transport bulldozers, excavators, transformers, and heavy machinery. Length and axle count can be customized to meet road regulations. Targeted at export markets in Africa, the Middle East, Asia, and Latin America.
Product Parameters
| Parameter | Specification |
| Product Name | 5-Axle Heavy Duty Low Flatbed Semi-Trailer |
| Maximum Load Capacity | 80-100 Tons |
| Number of Axles | 5 Axles |
| Tire Specification | 245/70R17.5 |
| Loading Platform | Anti-skid pattern steel plate |
| Main Beam Material | High-strength structural steel |
| Special Reinforcement | Reinforced rear cross beam |
| Loading Platform Height | 850mm |
| Overall Dimensions (L×W×H) | 17500×3000×1750mm |
| Suspension System | Heavy duty leaf spring suspension |
| Brake System | Dual line air brake system with ABS |
| Kingpin | 2-inch (50mm) or 3.5-inch (90mm) optional |
| Surface Treatment | Full shot blasting + anti-rust primer + top coat |
| Application | Oversized cargo, heavy machinery, construction equipment transportation |
| Customization Available | Yes (can be modified according to customer requirements) |
Product Features
1. Detachable gooseneck for drive-on loading of tracked and wheeled machinery.
2. High-tensile steel main beams with a deck height as low as 0.9 m.
3. Configurable 2 to 5 axles; hydraulic steering available for improved maneuverability.
4. Choice of mechanical or air suspension to suit varying road and load conditions.
5. Custom-built length and axle spacing to comply with local transport regulations
6. Engineered for bulldozers, excavators, transformers and oversized equipment.
7. Targeted at export markets in Africa, the Middle East, Asia and Latin America.
FAQ
Q: What is the deck height of a heavy transport semi-trailer?
A: The low-profile deck can go as low as 0.9 m, ideal for tall oversized cargo.
Q: How many axles can be configured?
A: 2 to 5 axles are available, with optional hydraulic steering for tighter turns.
Q: What kind of gooseneck is used?
A: It uses a detachable gooseneck, allowing tracked and wheeled machinery to drive on.
Q: Which suspension systems are offered?
A: Both mechanical and air suspension are available to match road conditions and load sensitivity.
Q: Can the trailer be customized?
A: Yes, length, axle spacing, and deck width can be built to meet specific country regulations.
Q: What cargo is it designed for?
A: Bulldozers, excavators, transformers, generators, and other oversized heavy equipment.
Q: How is it delivered for export?
A: Usually shipped in breakbulk or on flat racks, FOB main Chinese ports, with anti-rust treatment.
Q: Is after-sales support provided?
A: Yes, we supply spare parts and offer warranty support to all export markets.
